up readme

README.md

@@ -44,8 +44,9 @@
 #### PC客户端使用的是 ***1.3.0***，经测试 ***1.2.6+*** 都可以

 #### 关于PC端链接超时或者链接不上的问题以及解决方案
-- 链接不上是因为server端相对于客户端落后版本，server不会响应客户端的`secure_tcp`请求，所以客户端超时
-  相关代码代码位置在`https://github.com/rustdesk/rustdesk/blob/master/src/client.rs#L322`
+##### 链接不上是或者超时
+因为server端相对于客户端落后版本，server不会响应客户端的`secure_tcp`请求，所以客户端超时。
+相关代码代码位置在`https://github.com/rustdesk/rustdesk/blob/master/src/client.rs#L322`
   ```rust
     if !key.is_empty() && !token.is_empty() {
     // mainly for the security of token
@@ -55,35 +56,36 @@
   可看到当`key`和`token`都不为空时，会调用`secure_tcp`，但是server端不会响应，所以客户端超时
   `secure_tcp` 代码位置在 `https://github.com/rustdesk/rustdesk/blob/master/src/common.rs#L1203`

-- ***解决方案***
-
-  1. server端指定key。
-      - 优点：简单
-      - 缺点：链接不是加密的
-         ```bash
-         hbbs -r <relay-server-ip[:port]> -k <key>
-         hbbr -k <key>
-         ```
-         比如
-         ```bash
-           hbbs -r <relay-server-ip[:port]> -k abc1234567
-           hbbr -k abc1234567
-         ```
-  2. server端使用系统生成的key，或者自定义的密钥对，但如果client已登录，链接时容易超时或者链接不上，可以退出登录后再链接就可以了，webclient可以不用退出登录
-      - 优点：链接加密
-      - 缺点：操作麻烦
-  3. server端使用系统生成的key，或者自定义的密钥对，fork官方客户端的代码将`secure_tcp`修改成直接返回，然后通过`Github Actions`编译，下载编译后的客户端。
-  参考[官方文档](https://rustdesk.com/docs/en/dev/build/all/)
-      - 优点：链接加密，可以自定义客户端一些功能，编译后直接可用
-      - 缺点：需要自己fork代码，编译，有点难度
-  4. 使用[我fork的代码](https://github.com/lejianwen/rustdesk)，已经修改了`secure_tcp`，可以直接下载使用，[下载地址](https://github.com/lejianwen/rustdesk/releases)
-      - 优点：代码改动可查看，`Github Actions`编译，链接加密，直接下载使用
-      - 缺点：可能跟不上官方版本更新
-##### 对链接加密要求不高的可以使用`1`，对链接加密要求高的可以使用`3`或`4`
+##### 4种解决方案
+1. server端指定key。
+    - 优点：简单
+    - 缺点：链接不是加密的
+       ```bash
+       hbbs -r <relay-server-ip[:port]> -k <key>
+       hbbr -k <key>
+       ```
+       比如
+       ```bash
+         hbbs -r <relay-server-ip[:port]> -k abc1234567
+         hbbr -k abc1234567
+       ```
+2. server端使用系统生成的key，或者自定义的密钥对，但如果client已登录，链接时容易超时或者链接不上，可以退出登录后再链接就可以了，webclient可以不用退出登录
+    - 优点：链接加密
+    - 缺点：操作麻烦
+3. server端使用系统生成的key，或者自定义的密钥对，fork官方客户端的代码将`secure_tcp`修改成直接返回，然后通过`Github Actions`编译，下载编译后的客户端。
+参考[官方文档](https://rustdesk.com/docs/en/dev/build/all/)
+    - 优点：链接加密，可以自定义客户端一些功能，编译后直接可用
+    - 缺点：需要自己fork代码，编译，有点难度
+4. 使用[我fork的代码](https://github.com/lejianwen/rustdesk)，已经修改了`secure_tcp`，可以直接下载使用，[下载地址](https://github.com/lejianwen/rustdesk/releases)
+    - 优点：代码改动可查看，`Github Actions`编译，链接加密，直接下载使用
+    - 缺点：可能跟不上官方版本更新
+
+***对链接加密要求不高的可以使用`1`，对链接加密要求高的可以使用`3`或`4`***

 ## 功能

-### API 服务: 基本实现了PC端基础的接口。支持Personal版本接口，可以通过配置文件`rustdesk.personal`或环境变量`RUSTDESK_API_RUSTDESK_PERSONAL`来控制是否启用
+### API 服务
+基本实现了PC端基础的接口。支持Personal版本接口，可以通过配置文件`rustdesk.personal`或环境变量`RUSTDESK_API_RUSTDESK_PERSONAL`来控制是否启用

 #### 登录

@@ -96,26 +98,27 @@

 ![pc_ab](docs/pc_ab.png)

-#### 群组,群组分为`共享组`和`普通组`，共享组中所有人都能看到小组成员的设备，普通组只有管理员能看到所有小组成员的设备
+#### 群组
+群组分为`共享组`和`普通组`，共享组中所有人都能看到小组成员的设备，普通组只有管理员能看到所有小组成员的设备

 ![pc_gr](docs/pc_gr.png)

 ### Web Admin:

-***使用前后端分离，提供用户友好的管理界面，主要用来管理和展示。前端代码在[rustdesk-api-web](https://github.com/lejianwen/rustdesk-api-web)***
+* 使用前后端分离，提供用户友好的管理界面，主要用来管理和展示。前端代码在[rustdesk-api-web](https://github.com/lejianwen/rustdesk-api-web)

-***后台访问地址是`http://<your server>[:port]/_admin/`初次安装管理员为用户名密码为`admin` `admin`，请即时更改密码***
+* 后台访问地址是`http://<your server>[:port]/_admin/`初次安装管理员为用户名密码为`admin` `admin`，请即时更改密码

 1. 管理员界面
    ![web_admin](docs/web_admin.png)
 2. 普通用户界面
    ![web_user](docs/web_admin_user.png)
-   右上角也可以更改密码
+   右上角可以更改密码,也可以切换语言
    ![web_resetpwd](docs/web_resetpwd.png)

 3. 分组可以自定义，方便管理，暂时支持两种类型: `共享组` 和 `普通组`
    ![web_admin_gr](docs/web_admin_gr.png)

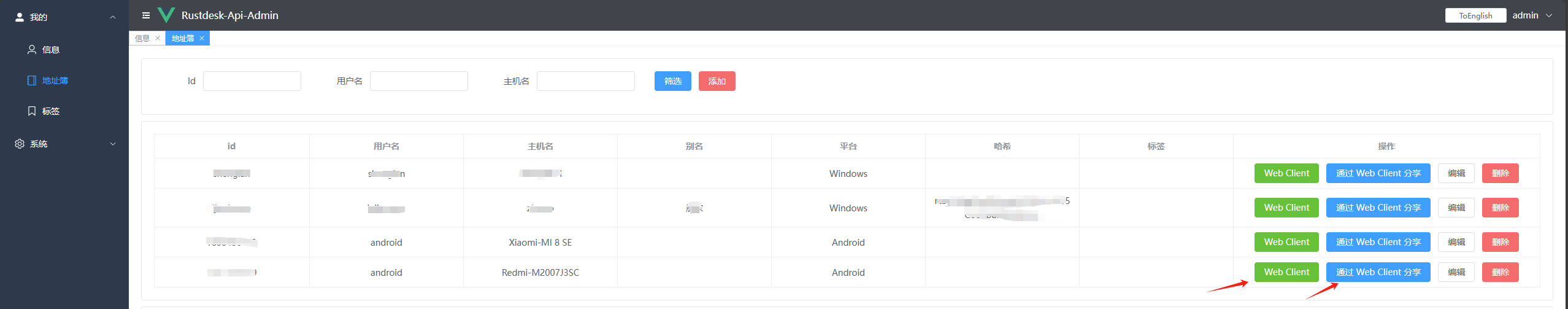

-4. 可以直接打开webclient，方便使用
+4. 可以直接打开webclient，方便使用；也可以分享给游客，游客可以直接通过webclient远程到设备
    ![web_webclient](docs/admin_webclient.png)
 5. Oauth,暂时只支持了`Github`和`Google`, 需要创建一个`OAuth App`，然后配置到后台
    ![web_admin_oauth](docs/web_admin_oauth.png)
@@ -174,7 +177,8 @@ logger:
   report-caller: true
 ```

-* 环境变量,变量名前缀是RUSTDESK_API，环境变量如果存在将覆盖配置文件中的配置
+### 环境变量
+变量名前缀是`RUSTDESK_API`，环境变量如果存在将覆盖配置文件中的配置

 | 变量名                                 | 说明                                   | 示例                          |
 |-------------------------------------|--------------------------------------|-----------------------------|
@@ -441,7 +445,22 @@ logger:

 6. 打开浏览器访问`http://<your server[:port]>/_admin/`，默认用户名密码为`admin`，请及时更改密码。

+#### nginx反代
+在`nginx`中配置反代
+```
+server {
+    listen <your port>;
+    server_name <your server>;
+    location / {
+        proxy_pass http://<api-server[:port]>;
+        proxy_set_header Host $host;
+        proxy_set_header X-Real-IP $remote_addr;
+        proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
+        proxy_set_header X-Forwarded-Proto $scheme;
+    }
+}
+```
 ## 其他

 - [修改客户端ID](https://github.com/abdullah-erturk/RustDesk-ID-Changer)
-- [webclient](https://hub.docker.com/r/keyurbhole/flutter_web_desk)
+- [webclient来源](https://hub.docker.com/r/keyurbhole/flutter_web_desk)

README_EN.md

@@ -44,7 +44,8 @@ desktop software that provides self-hosted solutions.
 #### The PC client uses version ***1.3.0***, and versions ***1.2.6+*** have been tested to work.

 #### Solutions for PC client connection timeout or connection issues
-- The connection issue is due to the server version lagging behind the client version, causing the server to not respond to the client's `secure_tcp` request, resulting in a timeout.
+##### Connection issues or timeouts
+Because the server version lags behind the client version, the server does not respond to the client's `secure_tcp` request, causing the client to timeout.
   Relevant code can be found at `https://github.com/rustdesk/rustdesk/blob/master/src/client.rs#L322`
   ```rust
     if !key.is_empty() && !token.is_empty() {
@@ -56,34 +57,36 @@ desktop software that provides self-hosted solutions.
 As seen, when both `key` and `token` are not empty, `secure_tcp` is called, but the server does not respond, causing the client to timeout.
 The `secure_tcp` code is located at `https://github.com/rustdesk/rustdesk/blob/master/src/common.rs#L1203`

-- ***Solutions***
-    1. Specify the key on the server.
-        - Advantage: Simple
-        - Disadvantage: The connection is not encrypted
-           ```bash
-           hbbs -r <relay-server-ip[:port]> -k <key>
-           hbbr -k <key>
-           ```
-          For example
-           ```bash
-             hbbs -r <relay-server-ip[:port]> -k abc1234567
-             hbbr -k abc1234567
-           ```
-    2. Use a system-generated key or a custom key pair on the server. If the client is already logged in, it may timeout or fail to connect. Logging out and reconnecting usually resolves the issue, and the web client does not need to log out.
-        - Advantage: Encrypted connection
-        - Disadvantage: Complicated operation
-    3. Use a system-generated key or a custom key pair on the server, fork the official client code to modify `secure_tcp` to return directly, then compile using `Github Actions` and download the compiled client.
-       Refer to [official documentation](https://rustdesk.com/docs/en/dev/build/all/)
-        - Advantage: Encrypted connection, customizable client features, ready to use after compilation
-        - Disadvantage: Requires forking code and compiling, which can be challenging
-    4. Use [my forked code](https://github.com/lejianwen/rustdesk), which has already modified `secure_tcp`. You can download and use it directly from [here](https://github.com/lejianwen/rustdesk/releases)
-        - Advantage: Code changes are viewable, compiled with `Github Actions`, encrypted connection, ready to use
-        - Disadvantage: May not keep up with official version updates
-##### If encryption is not a high priority, use `1`. If encryption is important, use `3` or `4`.
+##### Four Solutions
+1. Specify the key on the server.
+    - Advantage: Simple
+    - Disadvantage: The connection is not encrypted
+       ```bash
+       hbbs -r <relay-server-ip[:port]> -k <key>
+       hbbr -k <key>
+       ```
+      For example
+       ```bash
+         hbbs -r <relay-server-ip[:port]> -k abc1234567
+         hbbr -k abc1234567
+       ```
+2. Use a system-generated key or a custom key pair on the server. If the client is already logged in, it may timeout or fail to connect. Logging out and reconnecting usually resolves the issue, and the web client does not need to log out.
+    - Advantage: Encrypted connection
+    - Disadvantage: Complicated operation
+3. Use a system-generated key or a custom key pair on the server, fork the official client code to modify `secure_tcp` to return directly, then compile using `Github Actions` and download the compiled client.
+   Refer to [official documentation](https://rustdesk.com/docs/en/dev/build/all/)
+    - Advantage: Encrypted connection, customizable client features, ready to use after compilation
+    - Disadvantage: Requires forking code and compiling, which can be challenging
+4. Use [my forked code](https://github.com/lejianwen/rustdesk), which has already modified `secure_tcp`. You can download and use it directly from [here](https://github.com/lejianwen/rustdesk/releases)
+    - Advantage: Code changes are viewable, compiled with `Github Actions`, encrypted connection, ready to use
+    - Disadvantage: May not keep up with official version updates
+
+***If encryption is not a high priority, use `1`. If encryption is important, use `3` or `4`.***

 ## Overview

-### API Service: Basic implementation of the PC client's primary interfaces.Supports the Personal version api, which can be enabled by configuring the `rustdesk.personal` file or the `RUSTDESK_API_RUSTDESK_PERSONAL` environment variable.
+### API Service
+Basic implementation of the PC client's primary interfaces.Supports the Personal version api, which can be enabled by configuring the `rustdesk.personal` file or the `RUSTDESK_API_RUSTDESK_PERSONAL` environment variable.

 #### Login

@@ -97,17 +100,18 @@ The `secure_tcp` code is located at `https://github.com/rustdesk/rustdesk/blob/m

 ![pc_ab](docs/en_img/pc_ab.png)

-#### Groups: Groups are divided into `shared groups` and `regular groups`. In shared groups, everyone can see the peers of all group members, while in regular groups, only administrators can see all members' peers.
+#### Groups
+Groups are divided into `shared groups` and `regular groups`. In shared groups, everyone can see the peers of all group members, while in regular groups, only administrators can see all members' peers.

 ![pc_gr](docs/en_img/pc_gr.png)

 ### Web Admin

-***The frontend and backend are separated to provide a user-friendly management interface, primarily for managing and
-displaying data.Frontend code is available at [rustdesk-api-web](https://github.com/lejianwen/rustdesk-api-web)***
+* The frontend and backend are separated to provide a user-friendly management interface, primarily for managing and
+displaying data.Frontend code is available at [rustdesk-api-web](https://github.com/lejianwen/rustdesk-api-web)

-***Admin panel URL: `http://<your server[:port]>/_admin/`. The default username and password for the initial
-installation are `admin` `admin`, please change the password immediately.***
+* Admin panel URL: `http://<your server[:port]>/_admin/`. The default username and password for the initial
+installation are `admin` `admin`, please change the password immediately.

 1. Admin interface:
    ![web_admin](docs/en_img/web_admin.png)
@@ -117,7 +121,7 @@ installation are `admin` `admin`, please change the password immediately.***
    ![web_resetpwd](docs/en_img/web_resetpwd.png)
 3. Groups can be customized for easy management. Currently, two types are supported: `shared group` and `regular group`.
    ![web_admin_gr](docs/en_img/web_admin_gr.png)

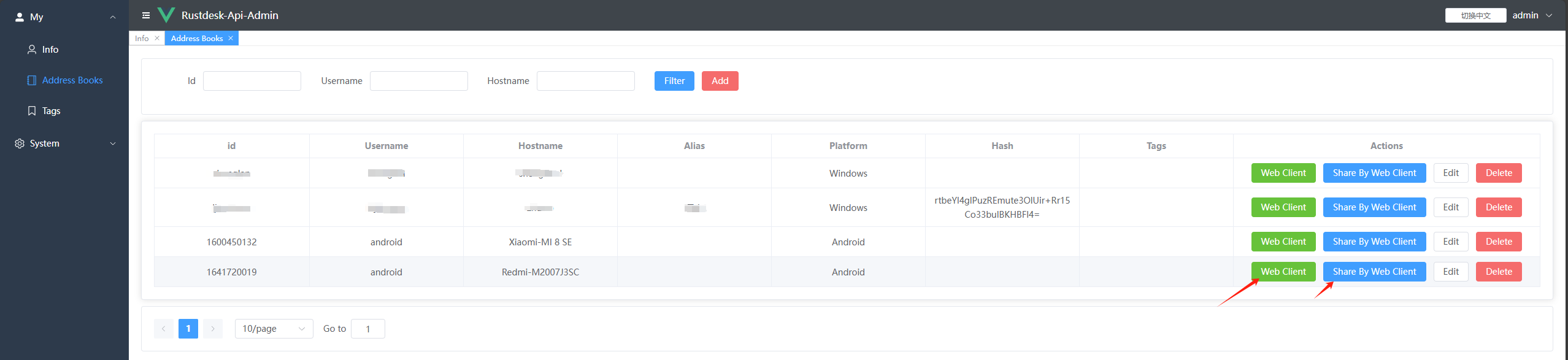

-4. You can open the web client directly for convenience:
+4. You can directly open the web client for convenient use; it can also be shared with guests, allowing them to remotely access the device via the web client.
    ![web_webclient](docs/en_img/admin_webclient.png)
 5. OAuth support: Currently, `GitHub` and `Google`  is supported. You need to create an `OAuth App` and configure it in
    the admin
@@ -179,9 +183,8 @@ logger:
   report-caller: true
 ```

-* Environment variables, with the prefix `RUSTDESK_API_RUSTDESK_PERSONAL`, will override the settings in the
-  configuration file if
-  present.
+### Environment Variables
+The prefix for variable names is `RUSTDESK_API`. If environment variables exist, they will override the configurations in the configuration file.

 | Variable Name                      | Description                                               | Example                        |
 |------------------------------------|-----------------------------------------------------------|--------------------------------|
@@ -454,7 +457,22 @@ Download the release from [release](https://github.com/lejianwen/rustdesk-api/re
 6. Open your browser and visit `http://<your server[:port]>/_admin/`, with default credentials `admin admin`. Please
    change the password promptly.

-## Miscellaneous
+#### nginx reverse proxy
+Configure reverse proxy in `nginx`
+```
+server {
+    listen <your port>;
+    server_name <your server>;
+    location / {
+        proxy_pass http://<api-server[:port]>;
+        proxy_set_header Host $host;
+        proxy_set_header X-Real-IP $remote_addr;
+        proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
+        proxy_set_header X-Forwarded-Proto $scheme;
+    }
+}
+```
+## Others

 - [Change client ID](https://github.com/abdullah-erturk/RustDesk-ID-Changer)
-- [webclient](https://hub.docker.com/r/keyurbhole/flutter_web_desk)
+- [Web client source](https://hub.docker.com/r/keyurbhole/flutter_web_desk)
