rustdesk-api-lejianwen/README_EN.md

RustDesk API

This project implements the RustDesk API using Go, and includes both a web UI and web client. RustDesk is a remote desktop software that provides self-hosted solutions.

Features

• PC API
  • Personal API
  • Login
  • Address Book
  • Groups
  • Authorized login, supports GitHub, Google and OIDC login, supports web admin authorized login
  • i18n
• Web Admin
  • User Management
  • Device Management
  • Address Book Management
  • Tag Management
  • Group Management
  • OAuth Management
  • Login Logs
  • Connection Logs
  • File Transfer Logs
  • Quick access to web client
  • i18n
  • Share to guest by web client
• Web Client
  • Automatically obtain API server
  • Automatically obtain ID server and KEY
  • Automatically obtain address book
  • Visitors are remotely to the device via a temporary sharing link

• CLI

  • Reset admin password

    Prerequisites

Rustdesk

The PC client uses version 1.3.0, and versions 1.2.6+ have been tested to work.

Solutions for PC client connection timeout or connection issues

Connection issues or timeouts

Because the server version lags behind the client version, the server does not respond to the client's secure_tcp request, causing the client to timeout. Relevant code can be found at https://github.com/rustdesk/rustdesk/blob/master/src/client.rs#L322

    if !key.is_empty() && !token.is_empty() {
    // mainly for the security of token
    allow_err!(secure_tcp(&mut socket, key).await);
    }

As seen, when both key and token are not empty, secure_tcp is called, but the server does not respond, causing the client to timeout. The secure_tcp code is located at https://github.com/rustdesk/rustdesk/blob/master/src/common.rs#L1203

Four Solutions

1. Specify the key on the server.
   • Advantage: Simple
   • Disadvantage: The connection is not encrypted bash hbbs -r <relay-server-ip[:port]> -k <key> hbbr -k <key> For example bash hbbs -r <relay-server-ip[:port]> -k abc1234567 hbbr -k abc1234567
2. Use a system-generated key or a custom key pair on the server. If the client is already logged in, it may timeout or fail to connect. Logging out and reconnecting usually resolves the issue, and the web client does not need to log out.
   • Advantage: Encrypted connection
   • Disadvantage: Complicated operation
3. Use a system-generated key or a custom key pair on the server, fork the official client code to modify secure_tcp to return directly, then compile using Github Actions and download the compiled client. Refer to official documentation
   • Advantage: Encrypted connection, customizable client features, ready to use after compilation
   • Disadvantage: Requires forking code and compiling, which can be challenging
4. Use my forked code, which has already modified secure_tcp. You can download and use it directly from here
   • Advantage: Code changes are viewable, compiled with Github Actions, encrypted connection, ready to use
   • Disadvantage: May not keep up with official version updates


If encryption is not a high priority, use 1. If encryption is important, use 3 or 4.

Overview

API Service

Basic implementation of the PC client's primary interfaces.Supports the Personal version api, which can be enabled by configuring the rustdesk.personal file or the RUSTDESK_API_RUSTDESK_PERSONAL environment variable.

Login

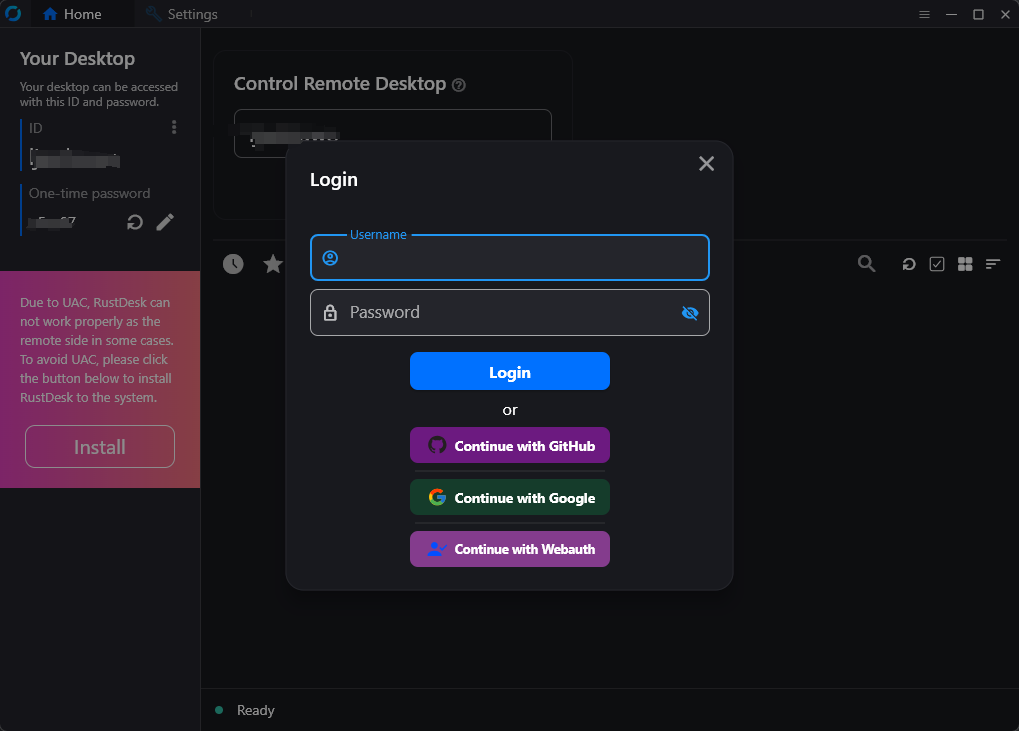

• Added GitHub, Google and OIDC login, which can be used after configuration in the admin panel. See the OAuth configuration section for details.
• Added authorization login for the web admin panel.

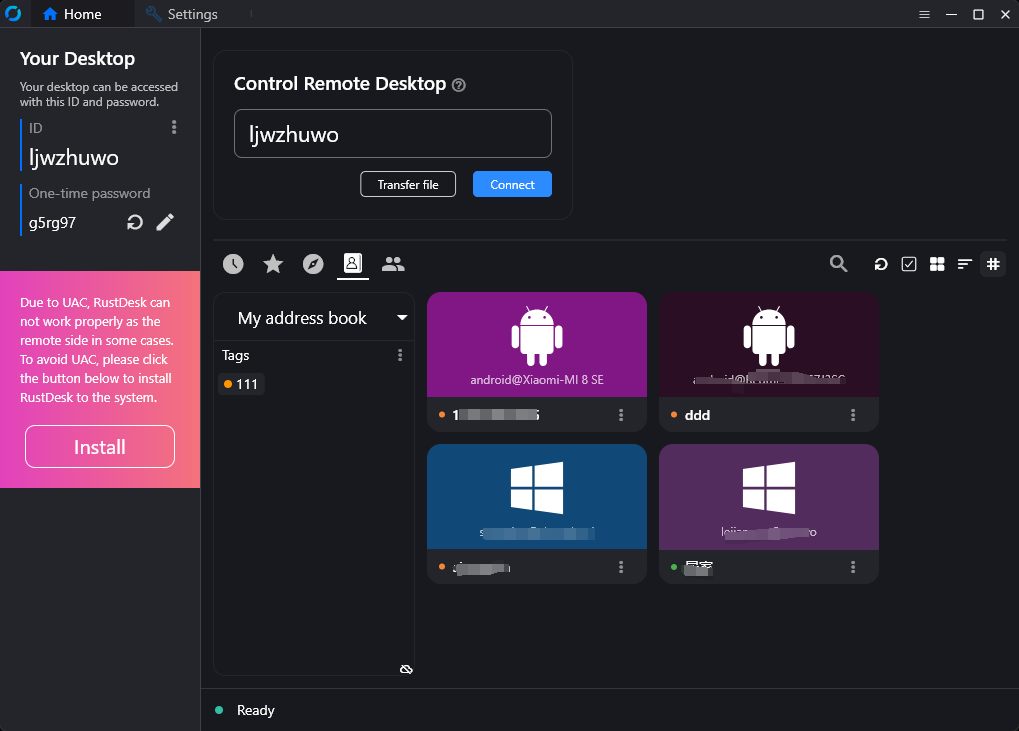

Address Book

Groups

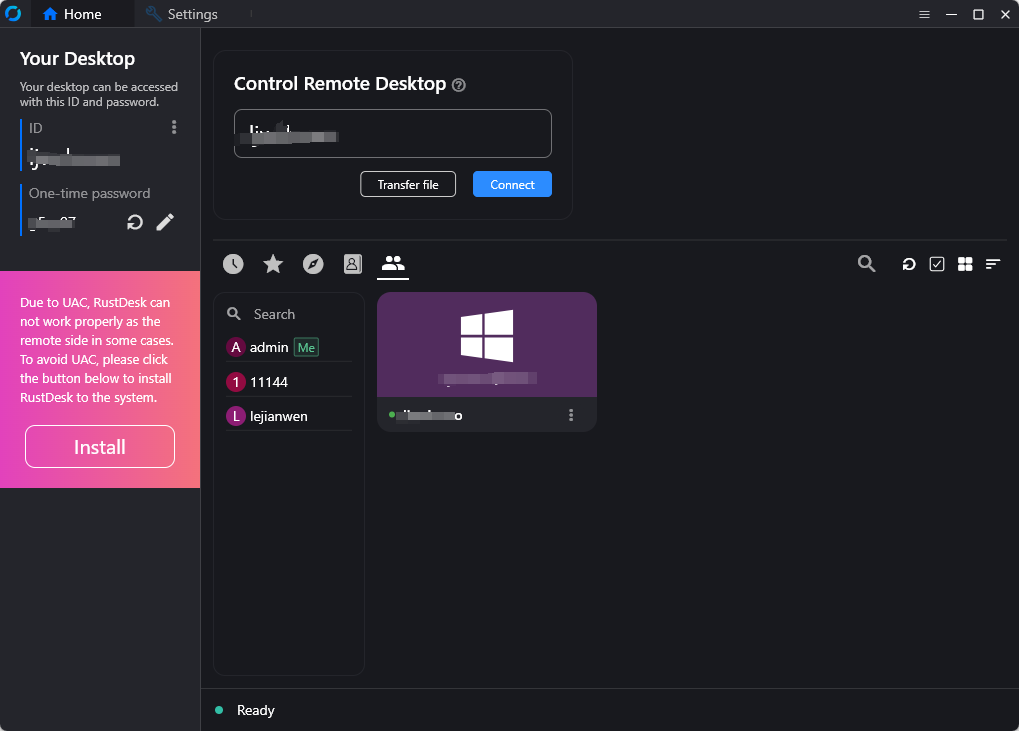

Groups are divided into shared groups and regular groups. In shared groups, everyone can see the peers of all group members, while in regular groups, only administrators can see all members' peers.

Web Admin

• The frontend and backend are separated to provide a user-friendly management interface, primarily for managing and displaying data.Frontend code is available at rustdesk-api-web

• Admin panel URL: http://<your server[:port]>/_admin/. The default username and password for the initial installation are admin admin, please change the password immediately.

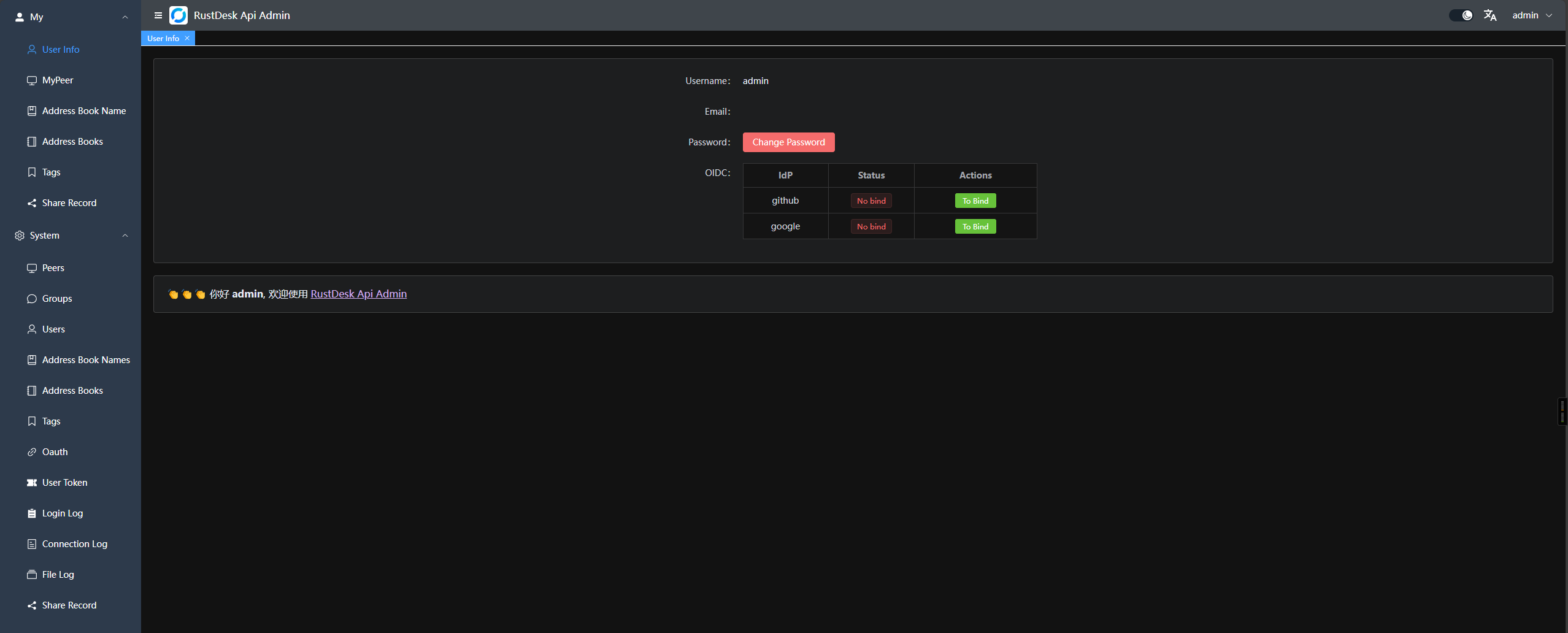

1. Admin interface:

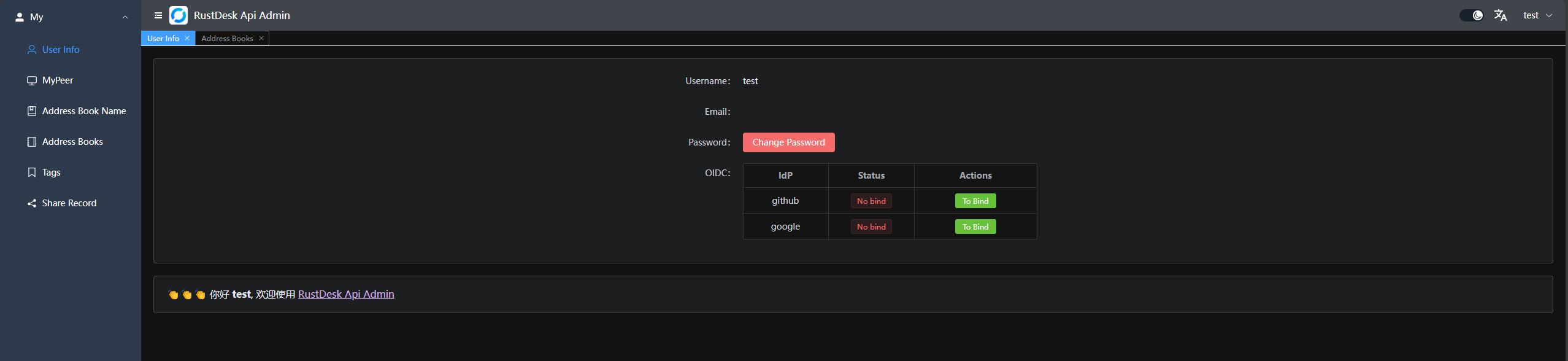

2. Regular user interface: In the top right corner, you can change the password, switch languages, and toggle between day/night mode.

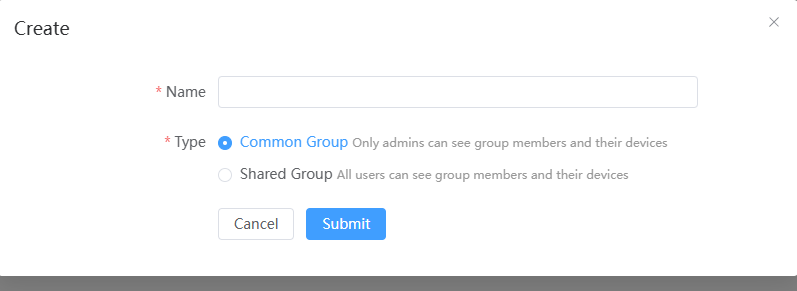

1. Groups can be customized for easy management. Currently, two types are supported: shared group and regular group.

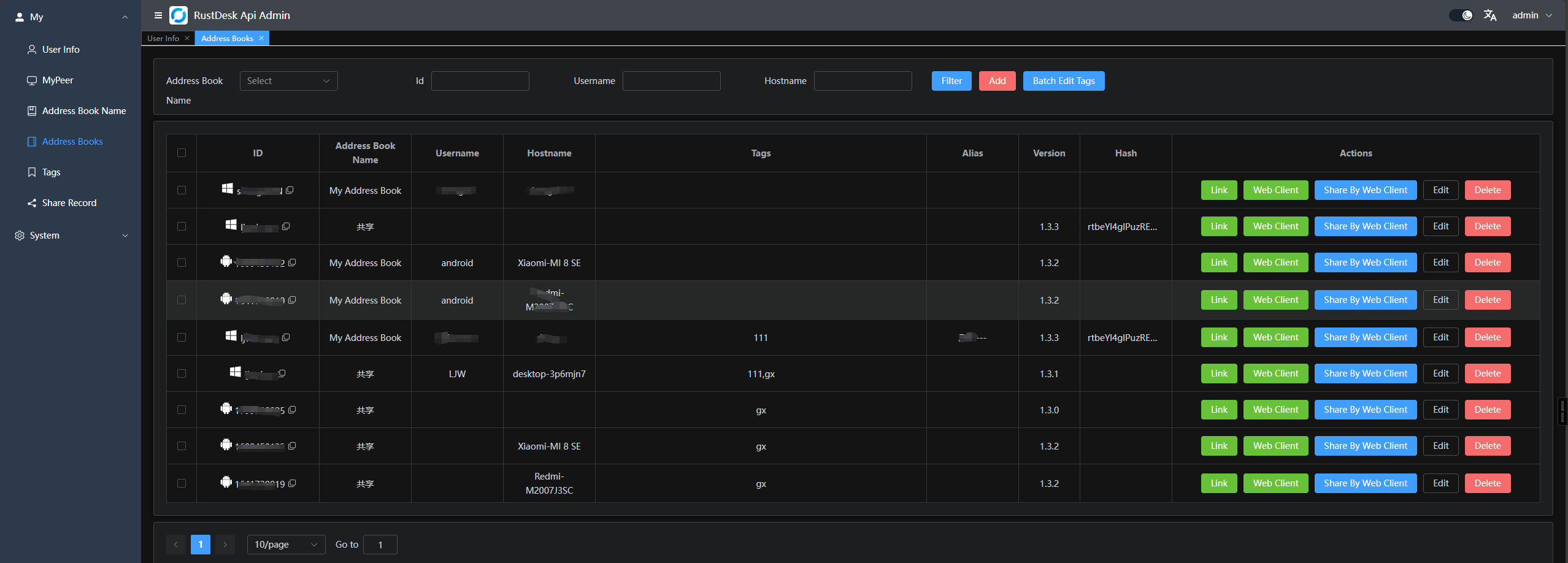

2. You can directly launch the client or open the web client for convenience; you can also share it with guests, who can remotely access the device via the web client.

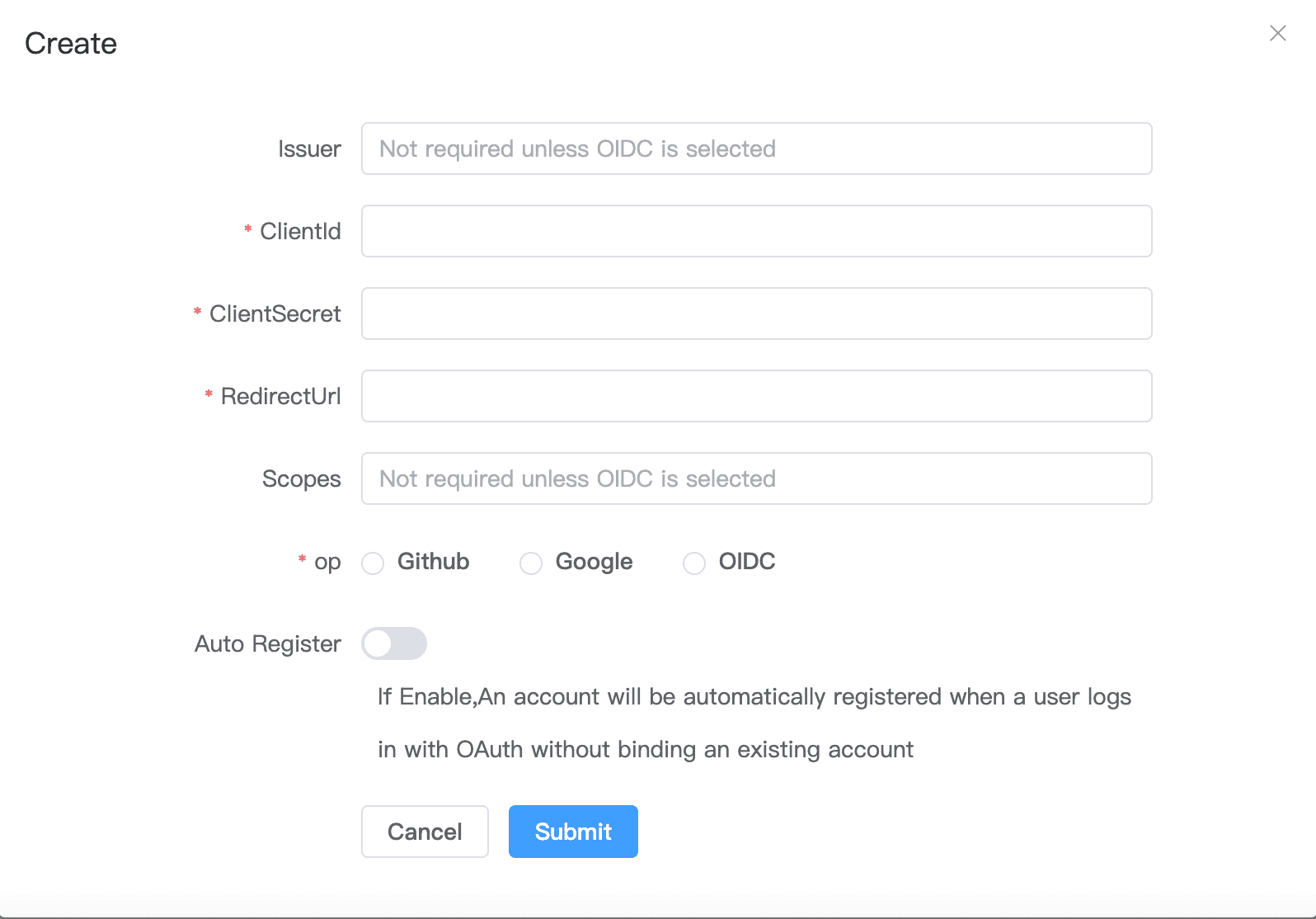

1. OAuth support: Currently, GitHub, Google and OIDC are supported. You need to create an OAuth App and configure it in the admin panel.
   • For Google and Github, you don't need to fill the Issuer and Scpoes
   • For OIDC, you must set the Issuer. And Scopes is optional which default is openid,email,profile, please make sure this Oauth App can access sub, email and preferred_username
   • Create a GitHub OAuth App at Settings -> Developer settings -> OAuth Apps -> New OAuth App here.
   • Set the Authorization callback URL to http://<your server[:port]>/api/oauth/callback, e.g., http://127.0.0.1:21114/api/oauth/callback.

Web Client:

1. If you're already logged into the admin panel, the web client will log in automatically.
2. If you're not logged in, simply click the login button in the top right corner, and the API server will be pre-configured.
3. After logging in, the ID server and key will be automatically synced.
4. The address book will also be automatically saved to the web client for convenient use.
5. Now supports v2 Preview, accessible at /webclient2
6. v2 preview deployment, WIKI

Automated Documentation : API documentation is generated using Swag, making it easier for developers to understand and use the API.

1. Admin panel docs: <your server[:port]>/admin/swagger/index.html
2. PC client docs: <your server[:port]>/swagger/index.html

CLI

# help
./apimain -h

Reset admin password

./apimain reset-admin-pwd <pwd>

Installation and Setup

Configuration

• Modify the configuration in conf/config.yaml.
• If gorm.type is set to sqlite, MySQL-related configurations are not required.
• Language support: en and zh-CN are supported. The default is zh-CN.

lang: "en"
app:
  web-client: 1  # web client route 1:open 0:close
  register: false #register enable
  show-swagger: 0 #show swagger 1:open 0:close
gin:
  api-addr: "0.0.0.0:21114"
  mode: "release"
  resources-path: 'resources'
  trust-proxy: ""
gorm:
  type: "sqlite"
  max-idle-conns: 10
  max-open-conns: 100
mysql:
  username: "root"
  password: "111111"
  addr: "192.168.1.66:3308"
  dbname: "rustdesk"
rustdesk:
  id-server: "192.168.1.66:21116"
  relay-server: "192.168.1.66:21117"
  api-server: "http://192.168.1.66:21114"
  key: "123456789"
  personal: 1
logger:
  path: "./runtime/log.txt"
  level: "warn" #trace,debug,info,warn,error,fatal
  report-caller: true
proxy:
  enable: false
  host: ""

Environment Variables

The prefix for variable names is RUSTDESK_API. If environment variables exist, they will override the configurations in the configuration file.

Variable Name	Description	Example
TZ	timezone	Asia/Shanghai
RUSTDESK_API_LANG	Language	en,zh-CN
RUSTDESK_API_APP_WEB_CLIENT	web client on/off; 1: on, 0 off, default: 1	1
RUSTDESK_API_APP_REGISTER	register enable; true, false; default:false	false
RUSTDESK_API_APP_SHOW_SWAGGER	swagger visible; 1: yes, 0: no; default: 0	0
----- ADMIN Configuration-----	----------	----------
RUSTDESK_API_ADMIN_TITLE	Admin Title	RustDesk Api Admin
RUSTDESK_API_ADMIN_HELLO	Admin welcome message, you can use html
RUSTDESK_API_ADMIN_HELLO_FILE	Admin welcome message file, will override RUSTDESK_API_ADMIN_HELLO	./conf/admin/hello.html
----- GIN Configuration -----	---------------------------------------	-----------------------------
RUSTDESK_API_GIN_TRUST_PROXY	Trusted proxy IPs, separated by commas.	192.168.1.2,192.168.1.3
----- GORM Configuration -----	---------------------------------------	-----------------------------
RUSTDESK_API_GORM_TYPE	Database type (sqlite or mysql). Default is sqlite.	sqlite
RUSTDESK_API_GORM_MAX_IDLE_CONNS	Maximum idle connections	10
RUSTDESK_API_GORM_MAX_OPEN_CONNS	Maximum open connections	100
RUSTDESK_API_RUSTDESK_PERSONAL	Open Personal Api 1:Enable,0:Disable	1
----- MYSQL Configuration -----	---------------------------------------	-----------------------------
RUSTDESK_API_MYSQL_USERNAME	MySQL username	root
RUSTDESK_API_MYSQL_PASSWORD	MySQL password	111111
RUSTDESK_API_MYSQL_ADDR	MySQL address	192.168.1.66:3306
RUSTDESK_API_MYSQL_DBNAME	MySQL database name	rustdesk
----- RUSTDESK Configuration -----	---------------------------------------	-----------------------------
RUSTDESK_API_RUSTDESK_ID_SERVER	Rustdesk ID server address	192.168.1.66:21116
RUSTDESK_API_RUSTDESK_RELAY_SERVER	Rustdesk relay server address	192.168.1.66:21117
RUSTDESK_API_RUSTDESK_API_SERVER	Rustdesk API server address	http://192.168.1.66:21114
RUSTDESK_API_RUSTDESK_KEY	Rustdesk key	123456789
RUSTDESK_API_RUSTDESK_KEY_FILE	Rustdesk key file	./conf/data/id_ed25519.pub
RUSTDESK_API_RUSTDESK_WEBCLIENT_MAGIC_QUERYONLINE	New online query method is enabled in the web client v2; '1': Enabled, '0': Disabled, not enabled by default	0
---- PROXY -----	---------------	----------
RUSTDESK_API_PROXY_ENABLE	proxy_enable :false, true	false
RUSTDESK_API_PROXY_HOST	proxy_host	http://127.0.0.1:1080

Installation Steps

Running via Docker

1. Run directly with Docker. Configuration can be modified by mounting the config file /app/conf/config.yaml, or by using environment variables to override settings.

   docker run -d --name rustdesk-api -p 21114:21114 \
   -v /data/rustdesk/api:/app/data \
   -e RUSTDESK_API_LANG=en \
   -e RUSTDESK_API_RUSTDESK_ID_SERVER=192.168.1.66:21116 \
   -e RUSTDESK_API_RUSTDESK_RELAY_SERVER=192.168.1.66:21117 \
   -e RUSTDESK_API_RUSTDESK_API_SERVER=http://192.168.1.66:21114 \
   -e RUSTDESK_API_RUSTDESK_KEY=abc123456 \
   lejianwen/rustdesk-api


2. Using docker-compose,look WIKI

Running from Release

Download the release from release.

Source Installation

1. Clone the repository:

   git clone https://github.com/lejianwen/rustdesk-api.git
   cd rustdesk-api


2. Install dependencies:

   go mod tidy
   # Install Swag if you need to generate documentation; otherwise, you can skip this step
   go install github.com/swaggo/swag/cmd/swag@latest


3. Build the admin front-end (the front-end code is in rustdesk-api-web):

   cd resources
   mkdir -p admin
   git clone https://github.com/lejianwen/rustdesk-api-web
   cd rustdesk-api-web
   npm install
   npm run build
   cp -ar dist/* ../admin/


4. Run:

   # Run directly
   go run cmd/apimain.go
   # Or generate and run the API using generate_api.go
   go generate generate_api.go


5. To compile, change to the project root directory. For Windows, run build.bat, and for Linux, run build.sh. After compiling, the corresponding executables will be generated in the release directory. Run the compiled executables directly.

6. Open your browser and visit http://<your server[:port]>/_admin/, with default credentials admin admin. Please change the password promptly.

Others

• Change client ID
• Web client source
