RustDesk API

This project implements the RustDesk API using Go, and includes both a web UI and web client. RustDesk is a remote desktop software that provides self-hosted solutions.

Features

PC API
- Personal API
- Login
- Address Book
- Groups
- Authorized login, supports GitHub, Google and OIDC login, supports web admin authorized login
- i18n
Web Admin
- User Management
- Device Management
- Address Book Management
- Tag Management
- Group Management
- OAuth Management
- Login Logs
- Connection Logs
- File Transfer Logs
- Quick access to web client
- i18n
- Share to guest by web client
Web Client
- Automatically obtain API server
- Automatically obtain ID server and KEY
- Automatically obtain address book
- Visitors are remotely to the device via a temporary sharing link
CLI
- Reset admin password

  Prerequisites

Rustdesk

The PC client uses version 1.3.0, and versions 1.2.6+ have been tested to work.

Solutions for PC client connection timeout or connection issues

Connection issues or timeouts

Because the server version lags behind the client version, the server does not respond to the client's secure_tcp request, causing the client to timeout. Relevant code can be found at https://github.com/rustdesk/rustdesk/blob/master/src/client.rs#L322

    if !key.is_empty() && !token.is_empty() {
    // mainly for the security of token
    allow_err!(secure_tcp(&mut socket, key).await);
    }

As seen, when both key and token are not empty, secure_tcp is called, but the server does not respond, causing the client to timeout. The secure_tcp code is located at https://github.com/rustdesk/rustdesk/blob/master/src/common.rs#L1203

Four Solutions

Specify the key on the server.
- Advantage: Simple
- Disadvantage: The connection is not encrypted bash hbbs -r <relay-server-ip[:port]> -k <key> hbbr -k <key> For example bash hbbs -r <relay-server-ip[:port]> -k abc1234567 hbbr -k abc1234567
Use a system-generated key or a custom key pair on the server. If the client is already logged in, it may timeout or fail to connect. Logging out and reconnecting usually resolves the issue, and the web client does not need to log out.
- Advantage: Encrypted connection
- Disadvantage: Complicated operation
Use a system-generated key or a custom key pair on the server, fork the official client code to modify secure_tcp to return directly, then compile using Github Actions and download the compiled client. Refer to official documentation
- Advantage: Encrypted connection, customizable client features, ready to use after compilation
- Disadvantage: Requires forking code and compiling, which can be challenging
Use my forked code, which has already modified secure_tcp. You can download and use it directly from here
- Advantage: Code changes are viewable, compiled with Github Actions, encrypted connection, ready to use
- Disadvantage: May not keep up with official version updates

If encryption is not a high priority, use 1. If encryption is important, use 3 or 4.

Overview

API Service

Basic implementation of the PC client's primary interfaces.Supports the Personal version api, which can be enabled by configuring the rustdesk.personal file or the RUSTDESK_API_RUSTDESK_PERSONAL environment variable.

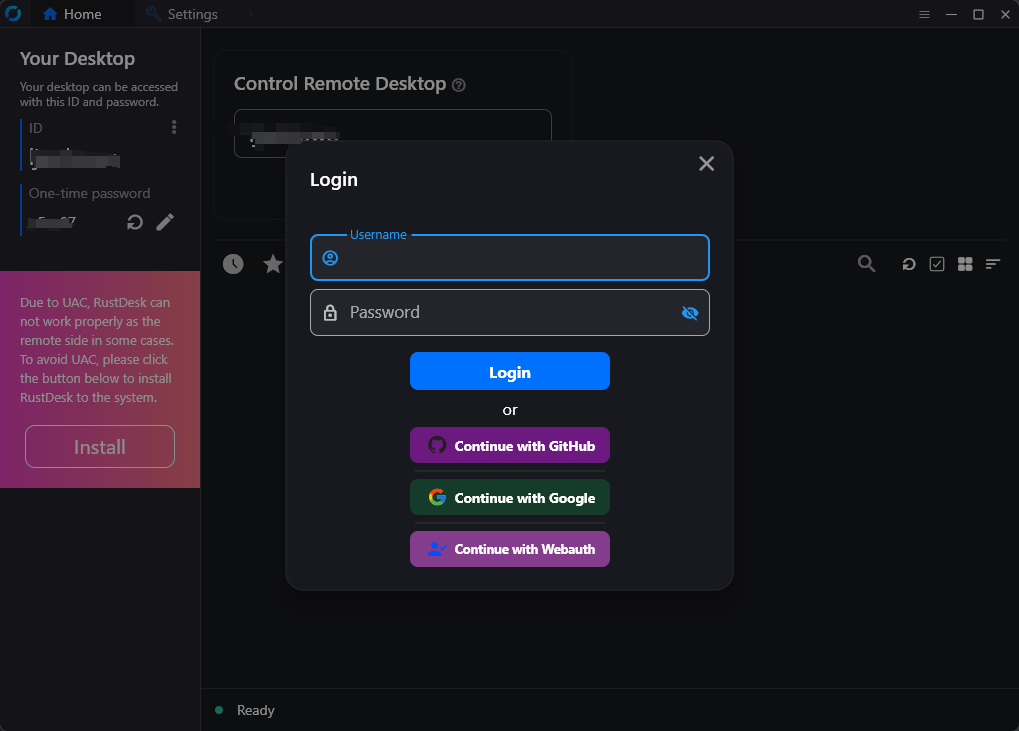

Login

Added GitHub, Google and OIDC login, which can be used after configuration in the admin panel. See the OAuth configuration section for details.
Added authorization login for the web admin panel.

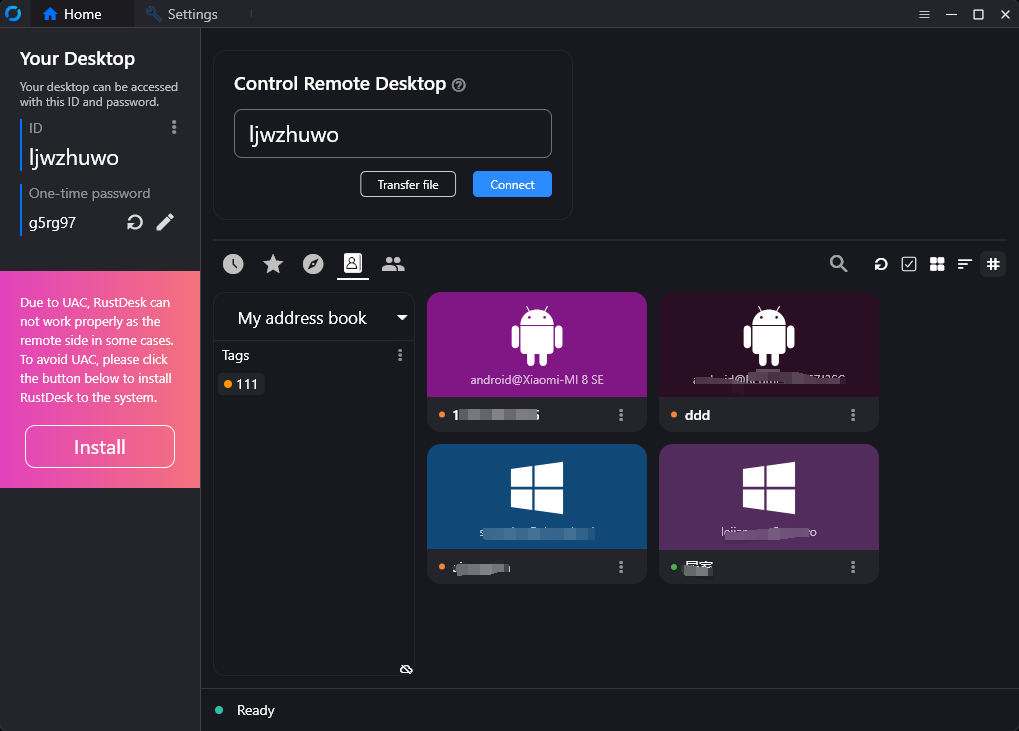

Address Book

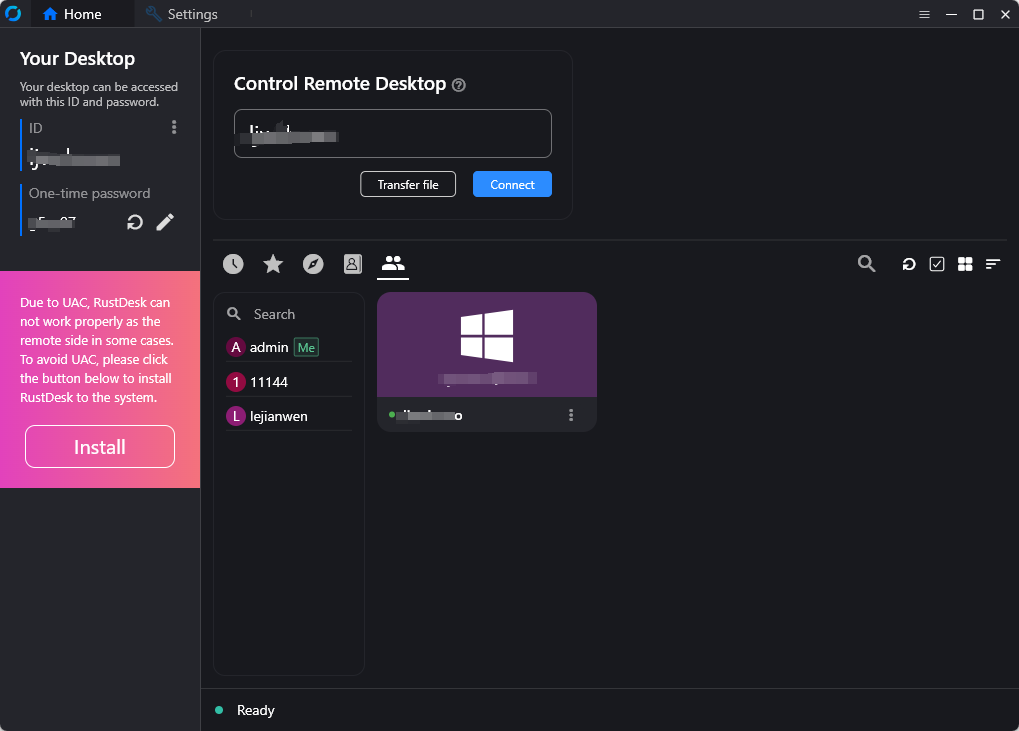

Groups

Groups are divided into shared groups and regular groups. In shared groups, everyone can see the peers of all group members, while in regular groups, only administrators can see all members' peers.

Web Admin

The frontend and backend are separated to provide a user-friendly management interface, primarily for managing and displaying data.Frontend code is available at rustdesk-api-web
Admin panel URL: http://<your server[:port]>/_admin/. The default username and password for the initial installation are admin admin, please change the password immediately.

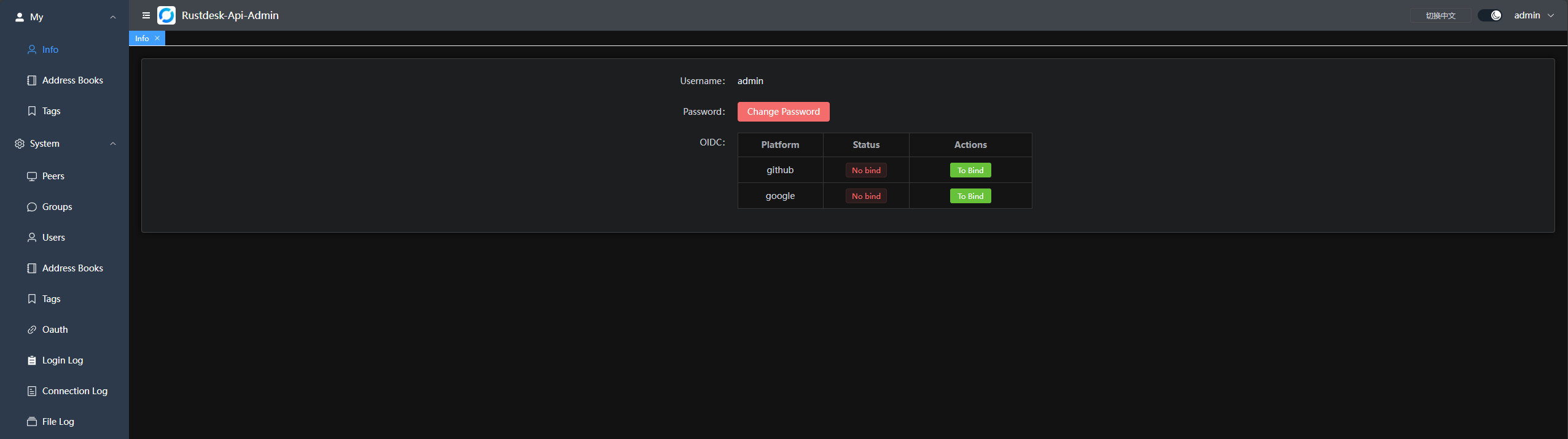

Admin interface:

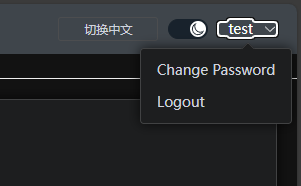

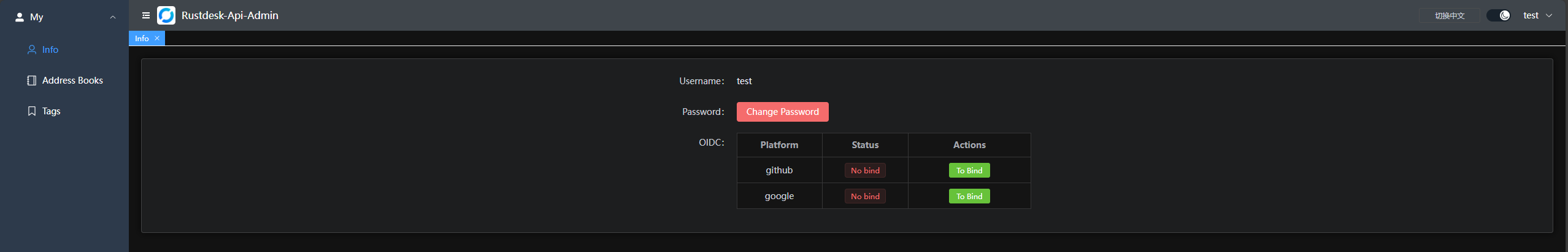

Regular user interface: In the top right corner, you can change the password, switch languages, and toggle between day/night mode.

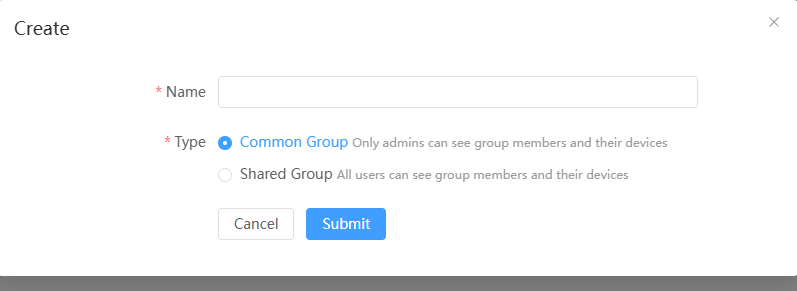

Groups can be customized for easy management. Currently, two types are supported: shared group and regular group.

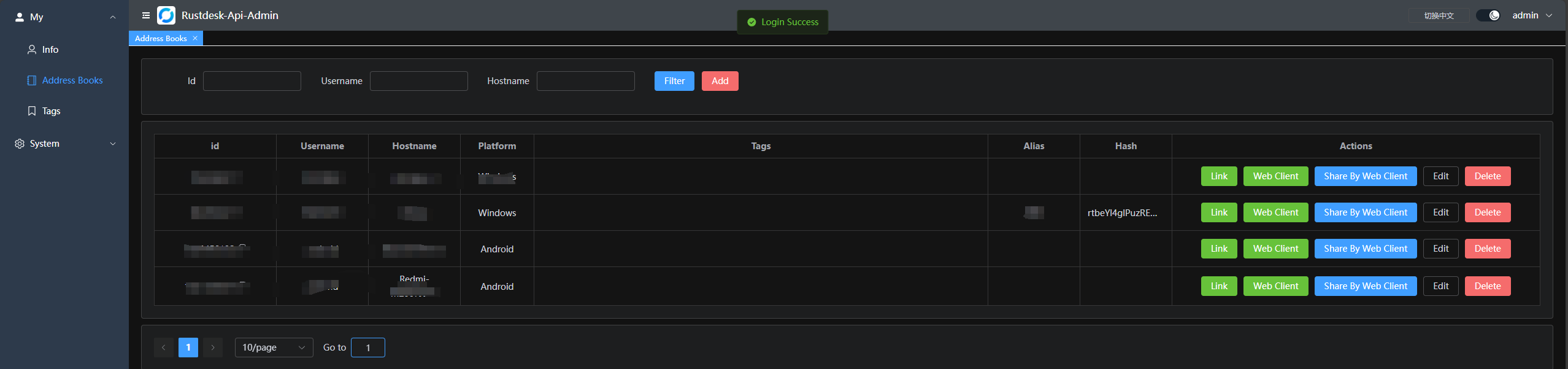

You can directly launch the client or open the web client for convenience; you can also share it with guests, who can remotely access the device via the web client.

OAuth support: Currently, GitHub, Google and OIDC are supported. You need to create an OAuth App and configure it in the admin panel.
- For Google and Github, you don't need to fill the Issuer and Scpoes
- For OIDC, you must set the Issuer. And Scopes is optional which default is openid,email,profile, please make sure this Oauth App can access sub, email and preferred_username
- Create a GitHub OAuth App at Settings -> Developer settings -> OAuth Apps -> New OAuth App here.
- Set the Authorization callback URL to http://<your server[:port]>/api/oauth/callback, e.g., http://127.0.0.1:21114/api/oauth/callback.

Web Client:

If you're already logged into the admin panel, the web client will log in automatically.
If you're not logged in, simply click the login button in the top right corner, and the API server will be pre-configured.
After logging in, the ID server and key will be automatically synced.
The address book will also be automatically saved to the web client for convenient use.
Now supports v2 Preview, accessible at /webclient2
v2 preview deployment
- If deploying via https on port 443, you must configure a reverse proxy. Refer to the official documentation
- If deploying via http or other https ports, configure 21118 and 21119 as with v1

Automated Documentation : API documentation is generated using Swag, making it easier for developers to understand and use the API.

Admin panel docs: <your server[:port]>/admin/swagger/index.html
PC client docs: <your server[:port]>/swagger/index.html

CLI

# help
./apimain -h

Reset admin password

./apimain reset-admin-pwd <pwd>

Installation and Setup

Configuration

Modify the configuration in conf/config.yaml.
If gorm.type is set to sqlite, MySQL-related configurations are not required.
Language support: en and zh-CN are supported. The default is zh-CN.

lang: "en"
app:
  web-client: 1  # web client route 1:open 0:close
  register: false #register enable
gin:
  api-addr: "0.0.0.0:21114"
  mode: "release"
  resources-path: 'resources'
  trust-proxy: ""
gorm:
  type: "sqlite"
  max-idle-conns: 10
  max-open-conns: 100
mysql:
  username: "root"
  password: "111111"
  addr: "192.168.1.66:3308"
  dbname: "rustdesk"
rustdesk:
  id-server: "192.168.1.66:21116"
  relay-server: "192.168.1.66:21117"
  api-server: "http://192.168.1.66:21114"
  key: "123456789"
  personal: 1
logger:
  path: "./runtime/log.txt"
  level: "warn" #trace,debug,info,warn,error,fatal
  report-caller: true
proxy:
  enable: false
  host: ""

Environment Variables

The prefix for variable names is RUSTDESK_API. If environment variables exist, they will override the configurations in the configuration file.

Variable Name	Description	Example
TZ	timezone	Asia/Shanghai
RUSTDESK_API_LANG	Language	`en`,`zh-CN`
RUSTDESK_API_APP_WEB_CLIENT	web client on/off; 1: on, 0 off, deault 1	1
RUSTDESK_API_APP_REGISTER	register enable; `true`, `false`; default:`false`	`false`
----- ADMIN Configuration-----	----------	----------
RUSTDESK_API_ADMIN_TITLE	Admin Title	`RustDesk Api Admin`
RUSTDESK_API_ADMIN_HELLO	Admin welcome message, you can use `html`
RUSTDESK_API_ADMIN_HELLO_FILE	Admin welcome message file, will override `RUSTDESK_API_ADMIN_HELLO`	`./conf/admin/hello.html`
----- GIN Configuration -----	---------------------------------------	-----------------------------
RUSTDESK_API_GIN_TRUST_PROXY	Trusted proxy IPs, separated by commas.	192.168.1.2,192.168.1.3
----- GORM Configuration -----	---------------------------------------	-----------------------------
RUSTDESK_API_GORM_TYPE	Database type (`sqlite` or `mysql`). Default is `sqlite`.	sqlite
RUSTDESK_API_GORM_MAX_IDLE_CONNS	Maximum idle connections	10
RUSTDESK_API_GORM_MAX_OPEN_CONNS	Maximum open connections	100
RUSTDESK_API_RUSTDESK_PERSONAL	Open Personal Api 1:Enable,0:Disable	1
----- MYSQL Configuration -----	---------------------------------------	-----------------------------
RUSTDESK_API_MYSQL_USERNAME	MySQL username	root
RUSTDESK_API_MYSQL_PASSWORD	MySQL password	111111
RUSTDESK_API_MYSQL_ADDR	MySQL address	192.168.1.66:3306
RUSTDESK_API_MYSQL_DBNAME	MySQL database name	rustdesk
----- RUSTDESK Configuration -----	---------------------------------------	-----------------------------
RUSTDESK_API_RUSTDESK_ID_SERVER	Rustdesk ID server address	192.168.1.66:21116
RUSTDESK_API_RUSTDESK_RELAY_SERVER	Rustdesk relay server address	192.168.1.66:21117
RUSTDESK_API_RUSTDESK_API_SERVER	Rustdesk API server address	http://192.168.1.66:21114
RUSTDESK_API_RUSTDESK_KEY	Rustdesk key	123456789
RUSTDESK_API_RUSTDESK_KEY_FILE	Rustdesk存放key的文件	`./conf/data/id_ed25519.pub`
---- PROXY -----	---------------	----------
RUSTDESK_API_PROXY_ENABLE	proxy_enable :`false`, `true`	`false`
RUSTDESK_API_PROXY_HOST	proxy_host	`http://127.0.0.1:1080`

Installation Steps

Running via Docker

Run directly with Docker. Configuration can be modified by mounting the config file /app/conf/config.yaml, or by using environment variables to override settings.

docker run -d --name rustdesk-api -p 21114:21114 \
-v /data/rustdesk/api:/app/data \
-e RUSTDESK_API_LANG=en \
-e RUSTDESK_API_RUSTDESK_ID_SERVER=192.168.1.66:21116 \
-e RUSTDESK_API_RUSTDESK_RELAY_SERVER=192.168.1.66:21117 \
-e RUSTDESK_API_RUSTDESK_API_SERVER=http://192.168.1.66:21114 \
-e RUSTDESK_API_RUSTDESK_KEY=abc123456 \
lejianwen/rustdesk-api

Using docker-compose
- Simple example:
```
services:
  rustdesk-api:
   container_name: rustdesk-api
   environment:
     - RUSTDESK_API_LANG=en
     - RUSTDESK_API_RUSTDESK_ID_SERVER=192.168.1.66:21116
     - RUSTDESK_API_RUSTDESK_RELAY_SERVER=192.168.1.66:21117
     - RUSTDESK_API_RUSTDESK_API_SERVER=http://192.168.1.66:21114
     - RUSTDESK_API_RUSTDESK_KEY=<key>
   ports:
     - 21114:21114
   image: lejianwen/rustdesk-api
   volumes:
     - /data/rustdesk/api:/app/data # Mount the database for easy backup
   networks:
     - rustdesk-net
   restart: unless-stopped
```
- Example with RustDesk's official Docker Compose file, adding your rustdesk-api service:
  - If you are using a system-generated KEY, remove the -k <key> parameter. However, after the first startup, run docker-compose logs hbbs or cat ./data/id_ed25519.pub to view the KEY, then modify RUSTDESK_API_RUSTDESK_KEY=<key> and execute docker-compose up -d again. yaml networks: rustdesk-net: external: false services: hbbs: container_name: hbbs ports: - 21115:21115 - 21116:21116 # 自定义 hbbs 映射端口 - 21116:21116/udp # 自定义 hbbs 映射端口 - 21118:21118 # web client image: rustdesk/rustdesk-server command: hbbs -r <relay-server-ip[:port]> -k <key> # 填入个人域名或 IP + hbbr 暴露端口 volumes: - ./data:/root # 自定义挂载目录 networks: - rustdesk-net depends_on: - hbbr restart: unless-stopped deploy: resources: limits: memory: 64M hbbr: container_name: hbbr ports: - 21117:21117 # 自定义 hbbr 映射端口 - 21119:21119 # web client image: rustdesk/rustdesk-server command: hbbr -k <key> volumes: - ./data:/root networks: - rustdesk-net restart: unless-stopped deploy: resources: limits: memory: 64M rustdesk-api: container_name: rustdesk-api environment: - TZ=Asia/Shanghai - RUSTDESK_API_RUSTDESK_ID_SERVER=192.168.1.66:21116 - RUSTDESK_API_RUSTDESK_RELAY_SERVER=192.168.1.66:21117 - RUSTDESK_API_RUSTDESK_API_SERVER=http://192.168.1.66:21114 - RUSTDESK_API_RUSTDESK_KEY=<key> ports: - 21114:21114 image: lejianwen/rustdesk-api volumes: - /data/rustdesk/api:/app/data #将数据库挂载出来方便备份 networks: - rustdesk-net restart: unless-stopped
- S6 image
  - - If using custom KEY, you will need to modify the startup script to override the /etc/s6-overlay/s6-rc.d/hbbr/run and /etc/s6-overlay/s6-rc.d/hbbr/run in the image.
    1. Create hbbr/run, only needed for custom KEY bash #!/command/with-contenv sh cd /data PARAMS= [ "${ENCRYPTED_ONLY}" = "1" ] && PARAMS="-k ${KEY}" /usr/bin/hbbr $PARAMS
    2. Create hbbs/run, only needed for custom KEY bash #!/command/with-contenv sh sleep 2 cd /data PARAMS= [ "${ENCRYPTED_ONLY}" = "1" ] && PARAMS="-k ${KEY}" /usr/bin/hbbs -r $RELAY $PARAMS
    3. Modify the s6 section in docker-compose.yml ```yaml networks: rustdesk-net: external: false services: rustdesk-server: container_name: rustdesk-server ports:
      - 21115:21115
      - 21116:21116
      - 21116:21116/udp
      - 21117:21117
      - 21118:21118
      - 21119:21119 image: rustdesk/rustdesk-server-s6:latest environment:
      - RELAY=192.168.1.66:21117
      - ENCRYPTED_ONLY=1
      - KEY= #KEY volumes:
      - ./data:/data
      - ./hbbr/run:/etc/s6-overlay/s6-rc.d/hbbr/run
      - ./hbbs/run:/etc/s6-overlay/s6-rc.d/hbbs/run restart: unless-stopped rustdesk-api: container_name: rustdesk-api ports:
      - 21114:21114 image: lejianwen/rustdesk-api environment:
      - TZ=Asia/Shanghai
      - RUSTDESK_API_RUSTDESK_ID_SERVER=192.168.1.66:21116
      - RUSTDESK_API_RUSTDESK_RELAY_SERVER=192.168.1.66:21117
      - RUSTDESK_API_RUSTDESK_API_SERVER=http://192.168.1.66:21114
      - RUSTDESK_API_RUSTDESK_KEY= volumes:
      - /data/rustdesk/api:/app/data networks:
      - rustdesk-net restart: unless-stopped ```
  - If using system-generated KEY or custom KEY_PUB, KEY_PRIV, you do not need to modify the startup script, but you need to obtain the KEY after it is generated and then run docker-compose up -d
```
networks:
 rustdesk-net:
   external: false
services:
 rustdesk-server:
   container_name: rustdesk-server
   ports:
     - 21115:21115
     - 21116:21116
     - 21116:21116/udp
     - 21117:21117
     - 21118:21118
     - 21119:21119
   image: rustdesk/rustdesk-server-s6:latest
   environment:
     - RELAY=192.168.1.66:21117
     - ENCRYPTED_ONLY=1
   volumes:
     - ./data:/data
   restart: unless-stopped
 rustdesk-api:
   container_name: rustdesk-api
   ports:
     - 21114:21114
   image: lejianwen/rustdesk-api
   environment:
     - TZ=Asia/Shanghai
     - RUSTDESK_API_RUSTDESK_ID_SERVER=192.168.1.66:21116
     - RUSTDESK_API_RUSTDESK_RELAY_SERVER=192.168.1.66:21117
     - RUSTDESK_API_RUSTDESK_API_SERVER=http://192.168.1.66:21114
     - RUSTDESK_API_RUSTDESK_KEY=<key>
   volumes:
     - /data/rustdesk/api:/app/data
   networks:
     - rustdesk-net
   restart: unless-stopped
```
Running from Release

Download the release from release.

Source Installation
1. Clone the repository:
```
git clone https://github.com/lejianwen/rustdesk-api.git
cd rustdesk-api
```
2. Install dependencies:
```
go mod tidy
# Install Swag if you need to generate documentation; otherwise, you can skip this step
go install github.com/swaggo/swag/cmd/swag@latest
```
3. Build the admin front-end (the front-end code is in rustdesk-api-web):
```
cd resources
mkdir -p admin
git clone https://github.com/lejianwen/rustdesk-api-web
cd rustdesk-api-web
npm install
npm run build
cp -ar dist/* ../admin/
```
4. Run:
```
# Run directly
go run cmd/apimain.go
# Or generate and run the API using generate_api.go
go generate generate_api.go
```
5. To compile, change to the project root directory. For Windows, run build.bat, and for Linux, run build.sh. After compiling, the corresponding executables will be generated in the release directory. Run the compiled executables directly.
6. Open your browser and visit http://<your server[:port]>/_admin/, with default credentials admin admin. Please change the password promptly.
nginx reverse proxy

Configure reverse proxy in nginx
```
server {
    listen <your port>;
    server_name <your server>;
    location / {
        proxy_pass http://<api-server[:port]>;
        proxy_set_header Host $host;
        proxy_set_header X-Real-IP $remote_addr;
        proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
        proxy_set_header X-Forwarded-Proto $scheme;
    }
}
```
Others
- Change client ID
- Web client source
