RustDesk API

This project implements the RustDesk API using Go, and includes both a web UI and web client. RustDesk is a remote desktop software that provides self-hosted solutions.

Features

PC API
- Personal API
- Login
- Address Book
- Groups
- Authorized login,
  - supports GitHub, Google and OIDC login,
  - supports web admin authorized login,
  - supports LDAP(test AD and openladp) if API Server config
- i18n
Web Admin
- User Management
- Device Management
- Address Book Management
- Tag Management
- Group Management
- OAuth Management
- LDAP Config by config file or ENV
- Login Logs
- Connection Logs
- File Transfer Logs
- Quick access to web client
- i18n
- Share to guest by web client
- Server control (some simple official commands WIKI)
Web Client
- Automatically obtain API server
- Automatically obtain ID server and KEY
- Automatically obtain address book
- Visitors are remotely to the device via a temporary sharing link
CLI
- Reset admin password

Overview

API Service

Basic implementation of the PC client's primary interfaces.Supports the Personal version api, which can be enabled by configuring the rustdesk.personal file or the RUSTDESK_API_RUSTDESK_PERSONAL environment variable.

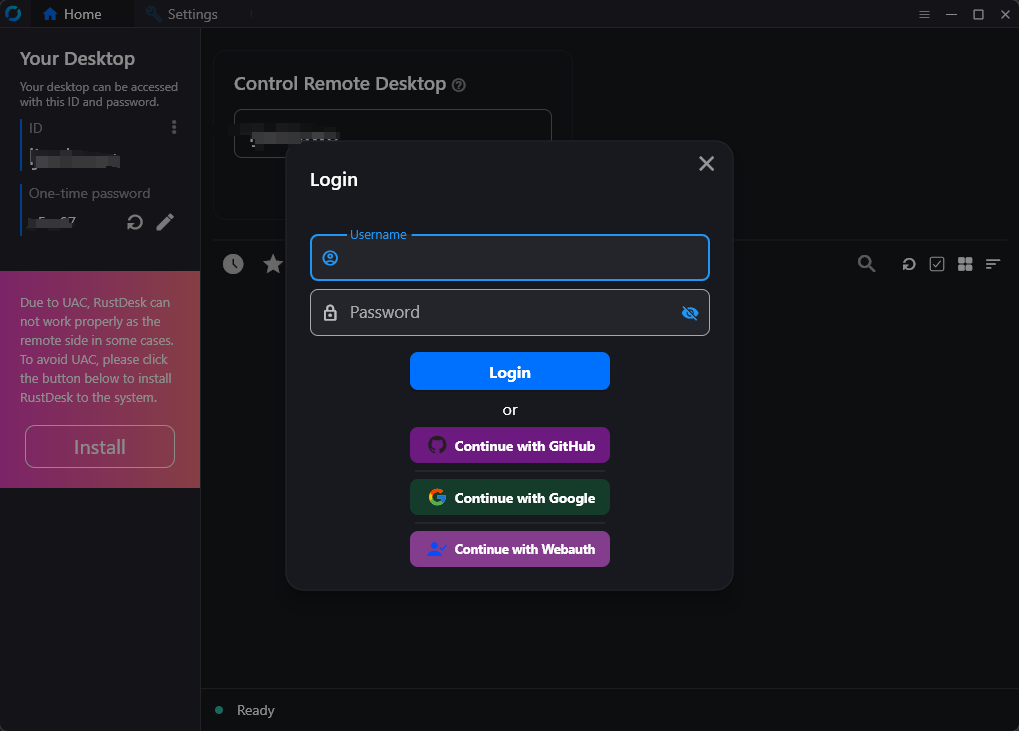

Login

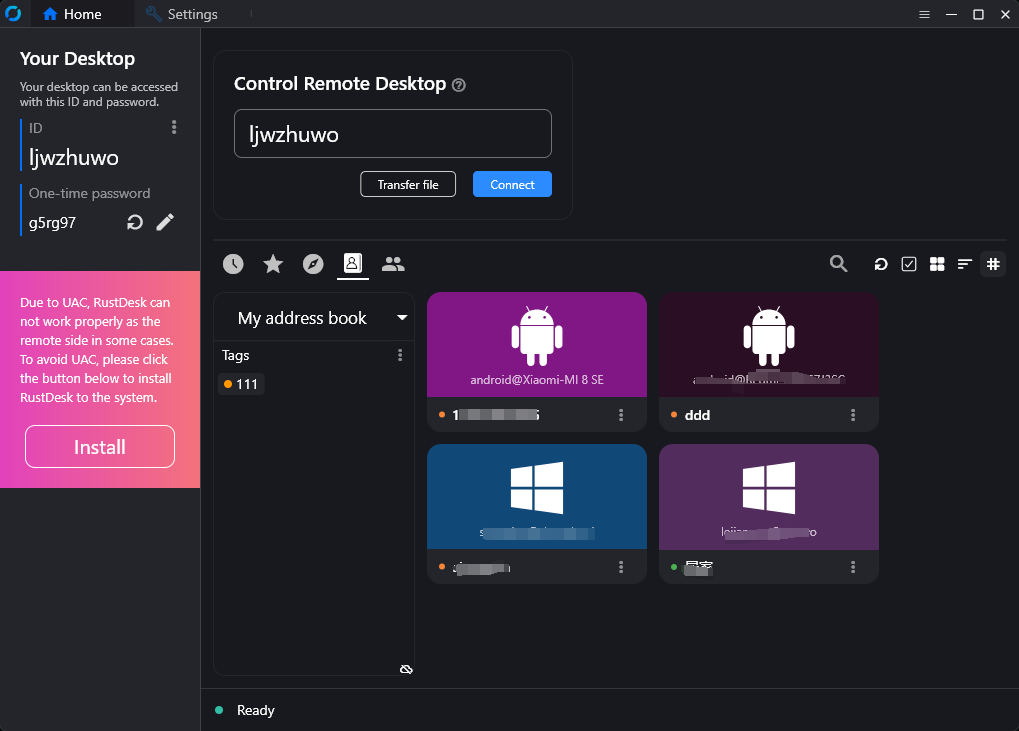

Address Book	Groups

Web Admin

The frontend and backend are separated to provide a user-friendly management interface, primarily for managing and displaying data.Frontend code is available at rustdesk-api-web
Admin panel URL: http://<your server[:port]>/_admin/
For the initial installation, the admin username is admin, and the password will be printed in the console. You can change the password via the command line.

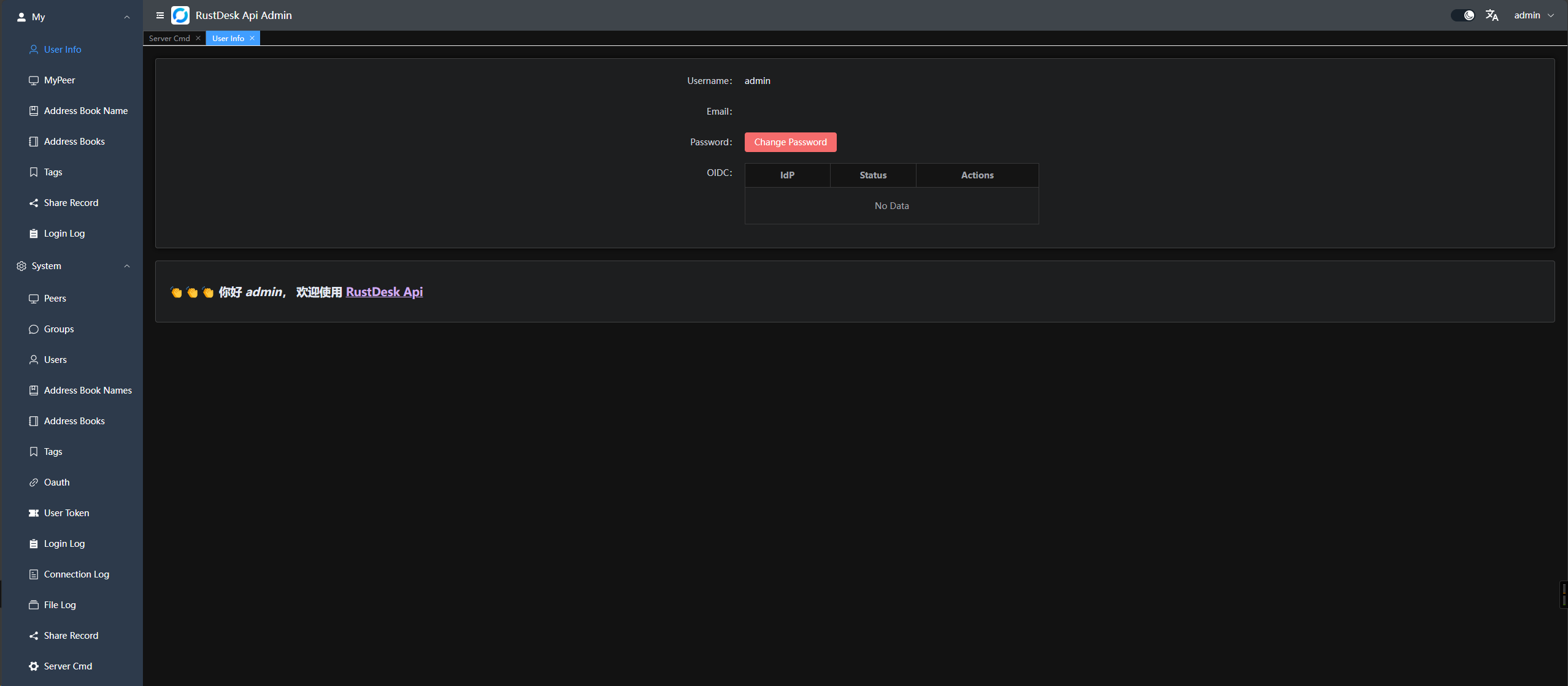

Admin interface:

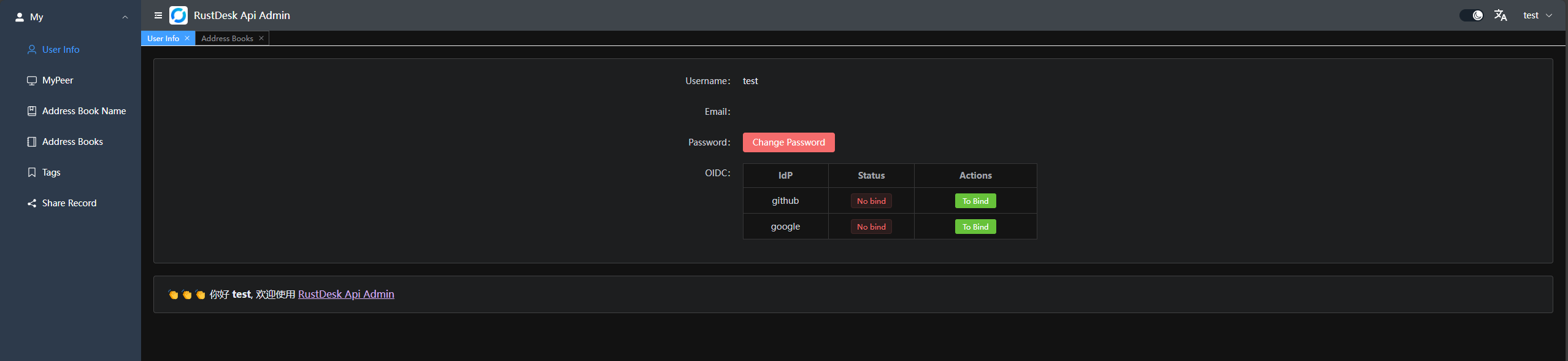

Regular user interface:
Each user can have multiple address books, which can also be shared with other users.
Groups can be customized for easy management. Currently, two types are supported: shared group and regular group.
You can directly launch the client or open the web client for convenience; you can also share it with guests, who can remotely access the device via the web client.
OAuth support: Currently, GitHub, Google and OIDC are supported. You need to create an OAuth App and configure it in the admin panel.
- For Google and Github, you don't need to fill the Issuer and Scpoes
- For OIDC, you must set the Issuer. And Scopes is optional which default is openid,email,profile, please make sure this Oauth App can access sub, email and preferred_username
- Create a GitHub OAuth App at Settings -> Developer settings -> OAuth Apps -> New OAuth App here.
- Set the Authorization callback URL to http://<your server[:port]>/api/oauth/callback, e.g., http://127.0.0.1:21114/api/oauth/callback.
Login logs
Connection logs
File transfer logs

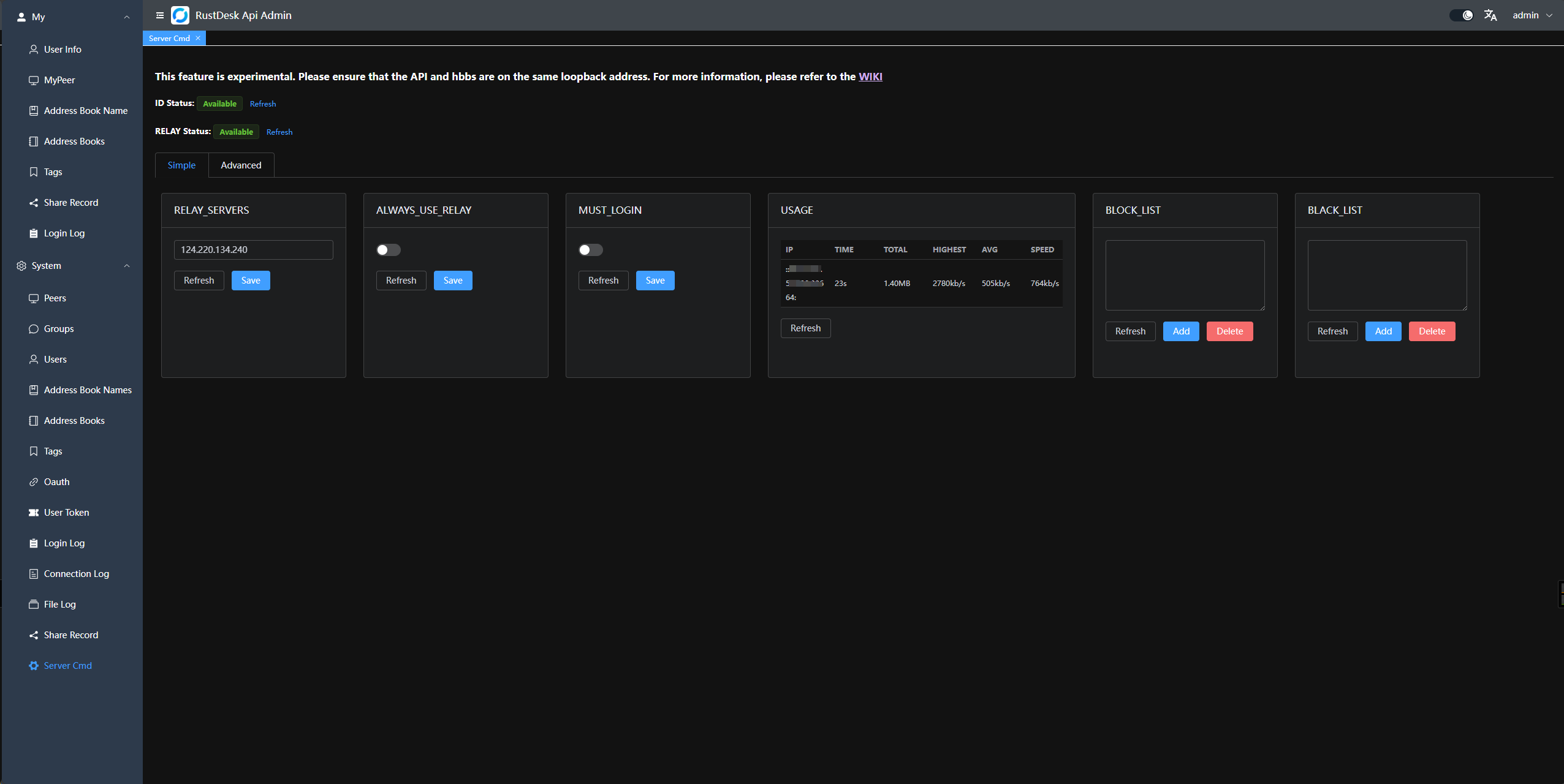

Server control
- Simple mode, some simple commands have been GUI-ized and can be executed directly in the backend
- Advanced mode, commands can be executed directly in the backend
- Official commands can be used
- Custom commands can be added
- Custom commands can be executed
LDAP Support, When you setup the LDAP(test for OpenLDAP and AD), you can login with the LDAP's user. https://github.com/lejianwen/rustdesk-api/issues/114 , if LDAP fail fallback local user

Web Client:

If you're already logged into the admin panel, the web client will log in automatically.
If you're not logged in, simply click the login button in the top right corner, and the API server will be pre-configured.
After logging in, the ID server and key will be automatically synced.
The address book will also be automatically saved to the web client for convenient use.
Now supports v2 Preview, accessible at /webclient2
v2 preview deployment, WIKI

Automated Documentation : API documentation is generated using Swag, making it easier for developers to understand and use the API.

Admin panel docs: <your server[:port]>/admin/swagger/index.html
PC client docs: <your server[:port]>/swagger/index.html

CLI

# help
./apimain -h

Reset admin password

./apimain reset-admin-pwd <pwd>

Installation and Setup

Configuration

Config File
Modify the configuration in conf/config.yaml.
If gorm.type is set to sqlite, MySQL-related configurations are not required.
Language support: en and zh-CN are supported. The default is zh-CN.

Environment Variables

The environment variables correspond one-to-one with the configurations in the conf/config.yaml file. The prefix for variable names is RUSTDESK_API. The table below does not list all configurations. Please refer to the configurations in conf/config.yaml.

Variable Name	Description	Example
TZ	timezone	Asia/Shanghai
RUSTDESK_API_LANG	Language	`en`,`zh-CN`
RUSTDESK_API_APP_WEB_CLIENT	web client on/off; 1: on, 0 off, default: 1	1
RUSTDESK_API_APP_REGISTER	register enable; `true`, `false`; default:`false`	`false`
RUSTDESK_API_APP_SHOW_SWAGGER	swagger visible; 1: yes, 0: no; default: 0	`0`
RUSTDESK_API_APP_TOKEN_EXPIRE	token expire duration	`168h`
RUSTDESK_API_APP_DISABLE_PWD_LOGIN	disable password login	`false`
RUSTDESK_API_APP_REGISTER_STATUS	register user default status ; 1 enabled , 2 disabled ; default 1	`1`
RUSTDESK_API_APP_CAPTCHA_THRESHOLD	captcha threshold; -1 disabled, 0 always enable, >0 threshold ;default `3`	`3`
RUSTDESK_API_APP_BAN_THRESHOLD	ban ip threshold; 0 disabled, >0 threshold ; default `0`	`0`
----- ADMIN Configuration-----	----------	----------
RUSTDESK_API_ADMIN_TITLE	Admin Title	`RustDesk Api Admin`
RUSTDESK_API_ADMIN_HELLO	Admin welcome message, you can use `html`
RUSTDESK_API_ADMIN_HELLO_FILE	Admin welcome message file, will override `RUSTDESK_API_ADMIN_HELLO`	`./conf/admin/hello.html`
----- GIN Configuration -----	---------------------------------------	-----------------------------
RUSTDESK_API_GIN_TRUST_PROXY	Trusted proxy IPs, separated by commas.	192.168.1.2,192.168.1.3
----- GORM Configuration -----	---------------------------------------	-----------------------------
RUSTDESK_API_GORM_TYPE	Database type (`sqlite` or `mysql`). Default is `sqlite`.	sqlite
RUSTDESK_API_GORM_MAX_IDLE_CONNS	Maximum idle connections	10
RUSTDESK_API_GORM_MAX_OPEN_CONNS	Maximum open connections	100
RUSTDESK_API_RUSTDESK_PERSONAL	Open Personal Api 1:Enable,0:Disable	1
----- MYSQL Configuration -----	---------------------------------------	-----------------------------
RUSTDESK_API_MYSQL_USERNAME	MySQL username	root
RUSTDESK_API_MYSQL_PASSWORD	MySQL password	111111
RUSTDESK_API_MYSQL_ADDR	MySQL address	192.168.1.66:3306
RUSTDESK_API_MYSQL_DBNAME	MySQL database name	rustdesk
----- RUSTDESK Configuration -----	---------------------------------------	-----------------------------
RUSTDESK_API_RUSTDESK_ID_SERVER	Rustdesk ID server address	192.168.1.66:21116
RUSTDESK_API_RUSTDESK_RELAY_SERVER	Rustdesk relay server address	192.168.1.66:21117
RUSTDESK_API_RUSTDESK_API_SERVER	Rustdesk API server address	http://192.168.1.66:21114
RUSTDESK_API_RUSTDESK_KEY	Rustdesk key	123456789
RUSTDESK_API_RUSTDESK_KEY_FILE	Rustdesk key file	`./conf/data/id_ed25519.pub`
RUSTDESK_API_RUSTDESK _WEBCLIENT_MAGIC_QUERYONLINE	New online query method is enabled in the web client v2; '1': Enabled, '0': Disabled, not enabled by default	`0`
RUSTDESK_API_RUSTDESK_WS_HOST	Custom Websocket Host	`wss://192.168.1.123:1234`
---- PROXY -----	---------------	----------
RUSTDESK_API_PROXY_ENABLE	proxy_enable :`false`, `true`	`false`
RUSTDESK_API_PROXY_HOST	proxy_host	`http://127.0.0.1:1080`
----JWT----	--------	--------
RUSTDESK_API_JWT_KEY	Custom JWT KEY, if empty JWT is not enabled. If `MUST_LOGIN` from `lejianwen/rustdesk-server` is not used, it is recommended to leave it empty.
RUSTDESK_API_JWT_EXPIRE_DURATION	JWT expire duration	`168h`

Installation Steps

Running via Docker

Run directly with Docker. Configuration can be modified by mounting the config file /app/conf/config.yaml, or by using environment variables to override settings.

docker run -d --name rustdesk-api -p 21114:21114 \
-v /data/rustdesk/api:/app/data \
-e RUSTDESK_API_LANG=en \
-e RUSTDESK_API_RUSTDESK_ID_SERVER=192.168.1.66:21116 \
-e RUSTDESK_API_RUSTDESK_RELAY_SERVER=192.168.1.66:21117 \
-e RUSTDESK_API_RUSTDESK_API_SERVER=http://192.168.1.66:21114 \
-e RUSTDESK_API_RUSTDESK_KEY=abc123456 \
lejianwen/rustdesk-api

Using docker-compose,look WIKI

Running from Release

Download the release from release.

Source Installation

Clone the repository:

git clone https://github.com/lejianwen/rustdesk-api.git
cd rustdesk-api

Install dependencies:

go mod tidy
# Install Swag if you need to generate documentation; otherwise, you can skip this step
go install github.com/swaggo/swag/cmd/swag@latest

Build the admin front-end (the front-end code is in rustdesk-api-web):

cd resources
mkdir -p admin
git clone https://github.com/lejianwen/rustdesk-api-web
cd rustdesk-api-web
npm install
npm run build
cp -ar dist/* ../admin/

Run:

# Run directly
go run cmd/apimain.go
# Or generate and run the API using generate_api.go
go generate generate_api.go

To compile, change to the project root directory. For Windows, run build.bat, and for Linux, run build.sh. After compiling, the corresponding executables will be generated in the release directory. Run the compiled executables directly.
Open your browser and visit http://<your server[:port]>/_admin/, with default credentials admin admin. Please change the password promptly.

Running with my forked server-s6 image

Connection timeout issue resolved
Can enforce login before initiating a connection
github https://github.com/lejianwen/rustdesk-server

 networks:
   rustdesk-net:
     external: false
 services:
   rustdesk:
     ports:
       - 21114:21114
       - 21115:21115
       - 21116:21116
       - 21116:21116/udp
       - 21117:21117
       - 21118:21118
       - 21119:21119
     image: lejianwen/rustdesk-server-s6:latest
     environment:
       - RELAY=<relay_server[:port]>
       - ENCRYPTED_ONLY=1
       - MUST_LOGIN=N
       - TZ=Asia/Shanghai
       - RUSTDESK_API_RUSTDESK_ID_SERVER=<id_server[:21116]>
       - RUSTDESK_API_RUSTDESK_RELAY_SERVER=<relay_server[:21117]>
       - RUSTDESK_API_RUSTDESK_API_SERVER=http://<api_server[:21114]>
       - RUSTDESK_API_KEY_FILE=/data/id_ed25519.pub
       - RUSTDESK_API_JWT_KEY=xxxxxx # jwt key
     volumes:
       - /data/rustdesk/server:/data
       - /data/rustdesk/api:/app/data #将数据库挂载
     networks:
       - rustdesk-net
     restart: unless-stopped

Others

Acknowledgements

Thanks to everyone who contributed!
